Smith Chart Explanation Diagram Plaque
Qty:
Size
20.3 × 25.4 cm
About Plaques
Sold by
About This Design
Smith Chart Explanation Diagram Plaque

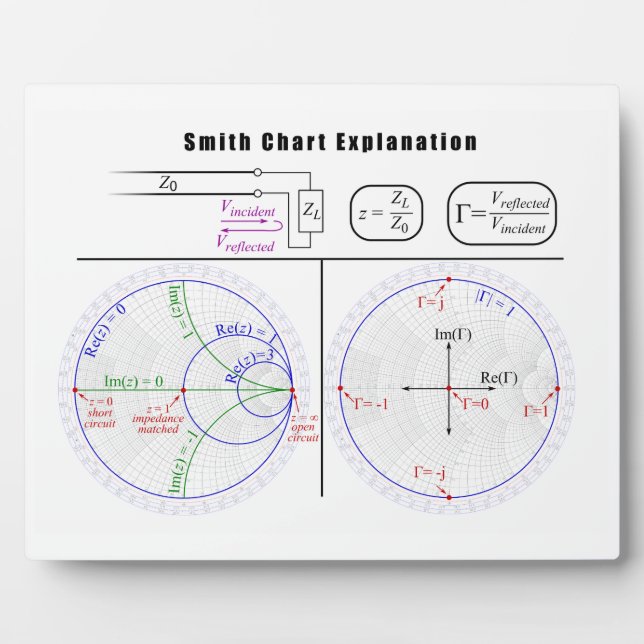

Most basic use of an impedance Smith chart. A wave travels down a transmission line of characteristic impedance Z0, terminated at a load with impedance ZL and normalized impedance z=ZL/Z0. There is a signal reflection with coefficient Γ. Each point on the Smith chart simultaneously represents both a value of z (bottom left), and the corresponding value of Γ (bottom right), related by z=(1+Γ)/(1-Γ).
