Induced Hydraulic Fracturing Hydrofracturing Poster

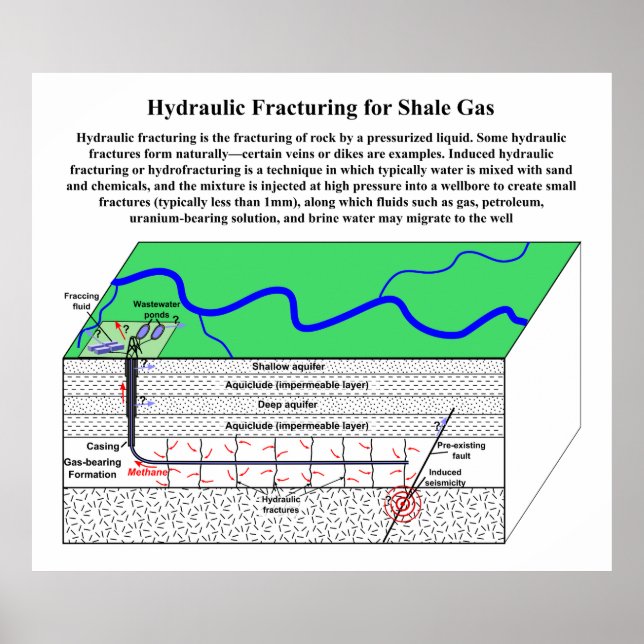

Author: Mikenorton. Induced hydraulic fracturing (hydrofracturing, also commonly known as fracking or fraccing) is a mining technique in which a liquid (in most cases water) is mixed with sand and chemicals and the resultant mixture injected at high pressure into a wellbore. This creates small fractures in the deep rock formations, typically less than 1mm wide, along which gas, petroleum and brine may migrate to the well. Hydraulic pressure is removed from the well, then small grains of proppant (sand or aluminium oxide) hold these fractures open once the rock achieves equilibrium. This file is licensed under the Creative Commons Attribution-Share Alike 3.0 Unported license. You are free: to share – to copy, distribute and transmit the work to remix – to adapt the work Under the following conditions: attribution – You must attribute the work in the manner specified by the author or licensor (but not in any way that suggests that they endorse you or your use of the work). share alike – If you alter, transform, or build upon this work, you may distribute the resulting work only under the same or similar license to this one. https://en.wikipedia.org/wiki/File:HydroFrac2.svg https://commons.wikimedia.org/wiki/User:Mikenorton
