A Proposed Mars Sample Return Mission. Poster

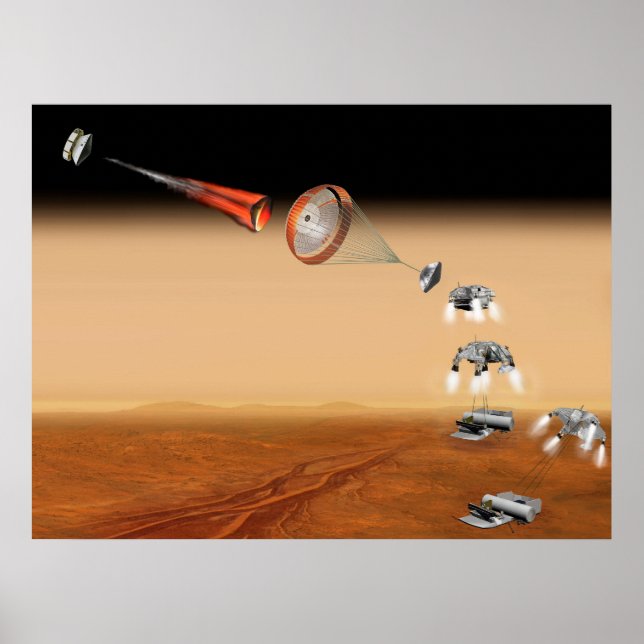

Artist's concept of a proposed Mars sample return mission, showing a series of six steps in the spacecraft's landing on Mars. The series begins at upper left, where the aeroshell capsule is still attached to the cruise stage that has provided power and manoeuvring during the trip from Earth to Mars. After jettisoning the cruise stage, the aeroshell uses friction with the Martian atmosphere to decelerate. The aeroshell protects other components of the flight system (enclosed inside) from the heat generated during the plunge through the upper atmosphere. In the third step portrayed, the spacecraft's parachute further slows the descent. After separation from the parachute and aeroshell, retro rockets on the descent stage fire to control the speed of the final approach toward the ground. The descent stage begins lowering the lander on a bridle. Timing of crucial steps during this final approach is based on radar input about the spacecraft's altitude and velocity. The lander, bearing a ro
